Scott's Hot Rods 4-Bar Rear Suspension Kits D-41-94-P
- Palletized and heavy shrink-wrapped for freight
- LTL carrier delivery with optional liftgate service
- Ships in 1–2 business days from Los Angeles, CA
- Transit typically 3–7 business days, continental US
Secure checkout by Stripe
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes
Scott’s Hot Rods 4-Bar Rear Suspension Kit, Ultimate Handling & Ride Quality Upgrade!
Scott’s Hot Rods 4-Bar Rear Suspension Kits (D-41-94-P) are engineered to dramatically improve ride quality and handling for hot rods and custom builds. These equal-length parallel 4-bars use an extra-long, perpendicular panhard bar to maximize efficiency and reduce lateral movement.
Fully adjustable for precision tuning, the CNC-machined stainless steel rod ends allow for pinion angle adjustments without unbolting link bars. Unlike a triangulated 4-link system, the pinion angle remains constant throughout suspension travel, ensuring consistent performance.
Available with coilovers or airbags, this kit offers customization options depending on your ride height and comfort preferences.
Perfect for street cruisers, performance builds, and custom hot rods!

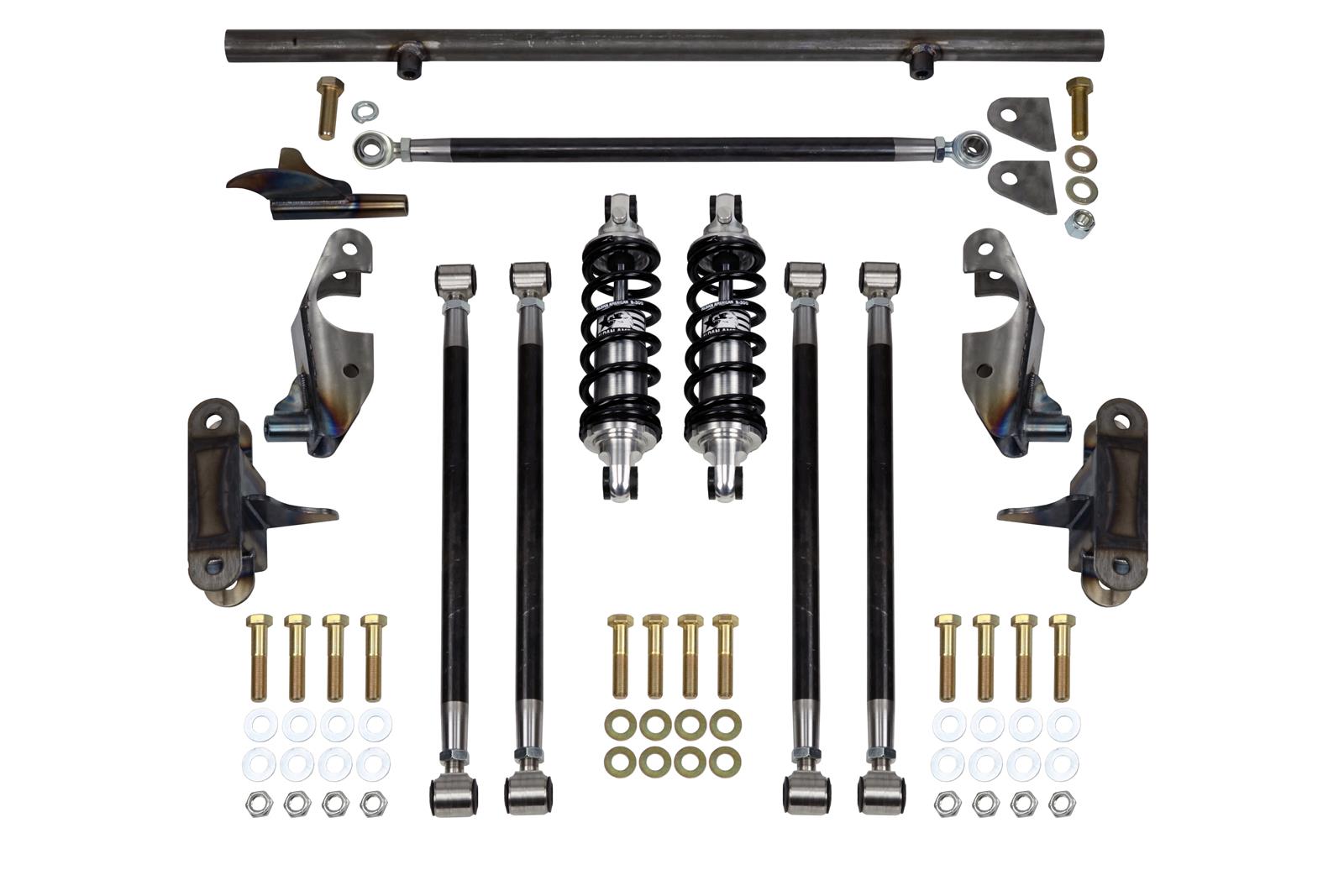

What’s Included in the Kit?
CNC-Machined 1 1/8″ x 1/4″ DOM Tubing Link & Panhard BarsStrong, durable & fully adjustable
Perpendicular Adjustable Panhard BarReduces lateral movement for better stability
CNC-Machined Stainless Steel Rod EndsRight-hand & left-hand thread for easy adjustment
FK Bearing Heim JointsHigh-quality, right-hand & left-hand threaded
Aldan American Single-Adjustable CoiloversThe ideal choice for everyday driving & performance
Upper Shock CrossmemberAllows for adjustable ride height during installation
Rear-End Housing BracketsProvides secure and precise mounting
Front Frame BracketsEnsures proper alignment & support
5/8″ Grade 8 HardwareHeavy-duty fasteners for maximum durability
Engineered for superior handling, comfort, and adjustability!
Technical Specifications
| Feature | Details |
|---|---|
| Brand | Scott’s Hotrods |
| Manufacturer Part # | D-41-94-P |
| Product Type | Rear Suspension Package |
| Suspension Type | 4-Bar Parallel System |
| Coilovers Included? | Yes (Aldan American Single-Adjustable) |
| Air Bags Included? | No (Available Separately) |
| Spring Finish | Black |
| Panhard Bar Included? | Yes (Adjustable, Perpendicular) |
| Upper Trailing Arms Included? | Yes (Double Adjustable) |
| Lower Trailing Arms Included? | Yes (Double Adjustable) |
| Trailing Arm Mount Braces Included? | Yes |
| Bushing Material | Spherical Bearing |
| Bushing Color | Natural |
| Rotors & Calipers Included? | No |
| Mounting Brackets Included? | Yes |
| Installation Type | Direct Bolt-On, No Welding Required |
| Special Notes | Axle bracket has a 4″ offset for a higher ride height |
Delivers exceptional ride comfort, improved handling, and precise adjustability!
Fitment & Compatibility
Designed for Hot Rods & Custom Builds
Works with Various Rear-End Housing Setups
Compatible with Coilovers or Airbag Suspension Systems
Perfect for show cars, performance cruisers, and street machines!
Installation Notes & Tips
Fully Bolt-On Installation, No Welding Required
Uses Existing Mounting Points for an Easy Fit
Pinion Angle is Adjustable Without Unbolting Link Bars
Ensure Proper Alignment for Optimal Ride Quality
Professional installation is recommended for best performance and alignment!
Frequently Asked Questions (FAQ)
How does this suspension kit improve my ride quality?
- The equal-length parallel 4-bar design keeps your rear axle stable, while the adjustable panhard bar reduces lateral movement, ensuring a smoother, more predictable ride.
What’s the difference between this and a triangulated 4-link system?
- Unlike a triangulated 4-link, this 4-bar system keeps the pinion angle consistent throughout suspension travel, improving stability and reducing unwanted changes in geometry.
Can I use airbags instead of coilovers?
- Yes! This kit is available with Firestone 9000 air springs for those who want adjustable ride height and the ability to lower their vehicle to the ground.
Is this a direct bolt-in kit?
- Yes! This kit bolts directly onto your rear-end housing and frame, with no cutting or welding required.
What type of coilovers are included?
- The kit includes Aldan American single-adjustable coilovers, ideal for everyday cruising and performance driving.
Call to Action, Upgrade Your Rear Suspension Today!
Transform your hot rod’s ride quality and handling with Scott’s Hot Rods 4-Bar Rear Suspension Kit!
Maximizes Stability & Control with Parallel 4-Bar Design
Perpendicular Panhard Bar Reduces Lateral Movement
Includes Adjustable Coilovers for Custom Ride Comfort
No Welding Required, Fully Bolt-On Installation
Order Now & Experience a Smoother, More Responsive Ride!
OverviewBrand:
Scott’s Hotrods
Manufacturer’s Part Number:
D-41-94-P
Part Type:
Rear Suspension Packages
Product Line:
Scott’s Hot Rods 4-Bar Rear Suspension Kits
Summit Racing Part Number:
SXH-D-41-94-P
Third Member Included:
No
Axle Shafts Included:
No
Upper Control Arms Included:
No
Lower Control Arms Included:
No
Air Bags Included:
No
Rear Shocks/Struts Included:
Yes
Rear Shock Type:
Single adjustable coilover
Coilover Springs Included:
Yes
Spring Finish:
Black
Suspension Package Finish:
Bare
Bushings Included:
Yes
Bushing Material:
Spherical bearing
Bushing Color:
Natural
Sway Bar Included:
No
Watts Link Included:
No
Panhard Bar Included:
Yes
Adjustable Panhard Bar Included:
Yes
Adjustable Panhard Bar Type:
Double adjustable
Upper Trailing Arms Included:
Yes
Adjustable Upper Trailing Arms Included:
Yes
Adjustable Upper Trailing Arms Type:
Double adjustable
Lower Trailing Arms Included:
Yes
Adjustable Lower Trailing Arms Included:
Yes
Adjustable Lower Trailing Arms Type:
Double adjustable
Trailing Arm Mount Braces Included:
Yes
Trailing Arm Hardware Included:
Yes
Rotors Included:
No
Calipers Included:
No
Quantity:
Sold as a kit.
Notes:
Includes Aldan coilovers.
Special Attention:
Axle bracket has lower bar offset 4 in. for a higher ride height.
