Global West Suspension Non-Negative Roll Coilover Front-End Kits COMST-6770BD
$1,317.06
+ $185.00 flat-rate insured LTL freight
(details)
$1,502.06 delivered to the continental US
- Palletized and heavy shrink-wrapped for freight
- LTL carrier delivery with optional liftgate service
- Ships in 1–2 business days from Los Angeles, CA
- Transit typically 3–7 business days, continental US
Secure checkout by Stripe
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes

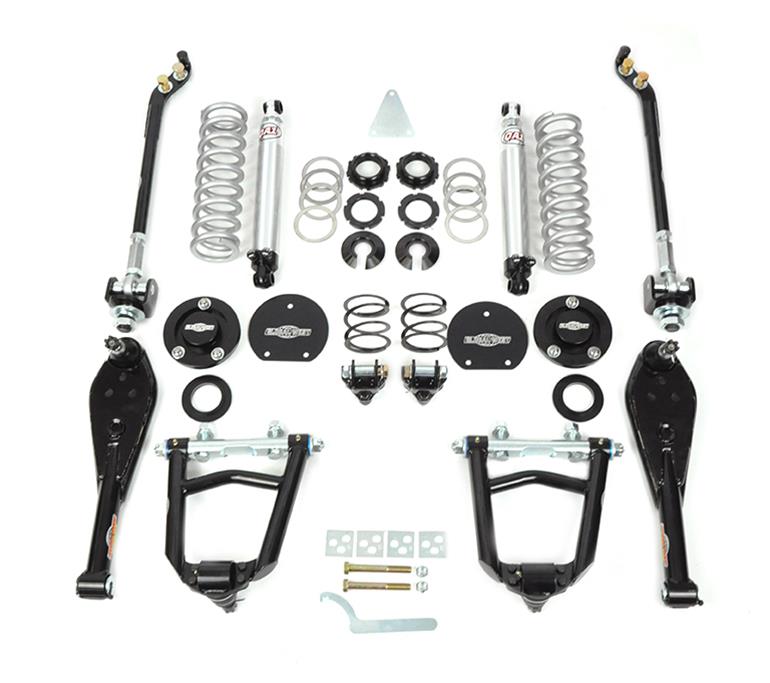

Global West Suspension Non-Negative Roll Coilover Front-End Kits
Global West Suspension non-negative roll coilover front-end kits replace the stock suspension with no welding or frame modifications, other than drilling a few mounting holes. This drag or street setup maintains a standard camber curve, which is more suited for this type of application. These coilover shock kits allow for more lift, adjustable ride height, optional externally adjustable shocks, and a variety of available spring rates. The primary benefit of going to coilover kits is the sensitivity of shock-to-wheel movement. This design moves the shock and spring closer to the lower ball joint, which is closer to the centerline of the tire. The closer the shock is to the centerline of the tire, the faster the shock and spring respond to input. Therefore, a small amount of shock adjustment will have a greater dampening effect. Global West front-end kits are available for a variety of applications from the 1960s and ’70s.
OverviewBrand:
Global West Suspension
Manufacturer’s Part Number:
COMST-6770BD
Part Type:
Coilover Kits
Product Line:
Global West Suspension Non-Negative Roll Coilover Front-End Kits
Summit Racing Part Number:
GLS-COMST-6770BD
Coilover Kit Position:
Front
Adjustable Valving:
Yes
Number of Valving Selections:
576
Shocks Included:
Yes
Internal Design:
Twin-tube
Coilover Springs Included:
Yes
Spring Rate (lbs/in.):
350 lbs./in.
Suspension Height Adjustment:
0.0-4.0 in. lowered
Gas Charged:
No
Upper Mount:
Eyelet
Lower Mount:
Eyelet
Shock Body Material:
Aluminum
Shock Body Finish:
Clear anodized
Bushing Material:
Polyurethane
Bushing Color:
Black
Spring Finish:
Red
Crossmember Included:
No
Adjustable Mounting Bracket Included:
No
Hardware Included:
Yes
Welding Required:
No
Quantity:
Sold as a kit.
Notes:
Bump and rebound shock adjustment only. Fits big block models only.
