Multimatic 235 Multiprocess Welder
Inspected & Documented Condition notes recorded before palletizing.
30-Day Startup Warranty Covers block, heads and internal moving components.
In Stock & Ready to Freight Welding Equipment

Multimatic 235 Multiprocess Welder

Brand: Miller
Condition: Used
$1,619.90
+ $185.00 flat-rate insured LTL freight (details)
$1,804.90 delivered to the continental US
  • Palletized and heavy shrink-wrapped for freight
  • LTL carrier delivery with optional liftgate service
  • Ships in 1–2 business days from Los Angeles, CA
  • Transit typically 3–7 business days, continental US
Ask a question about this unit
Secure checkout by Stripe

Need a matched transmission, controls or wiring package? Speak with a parts specialist.

Details & Inspection Notes

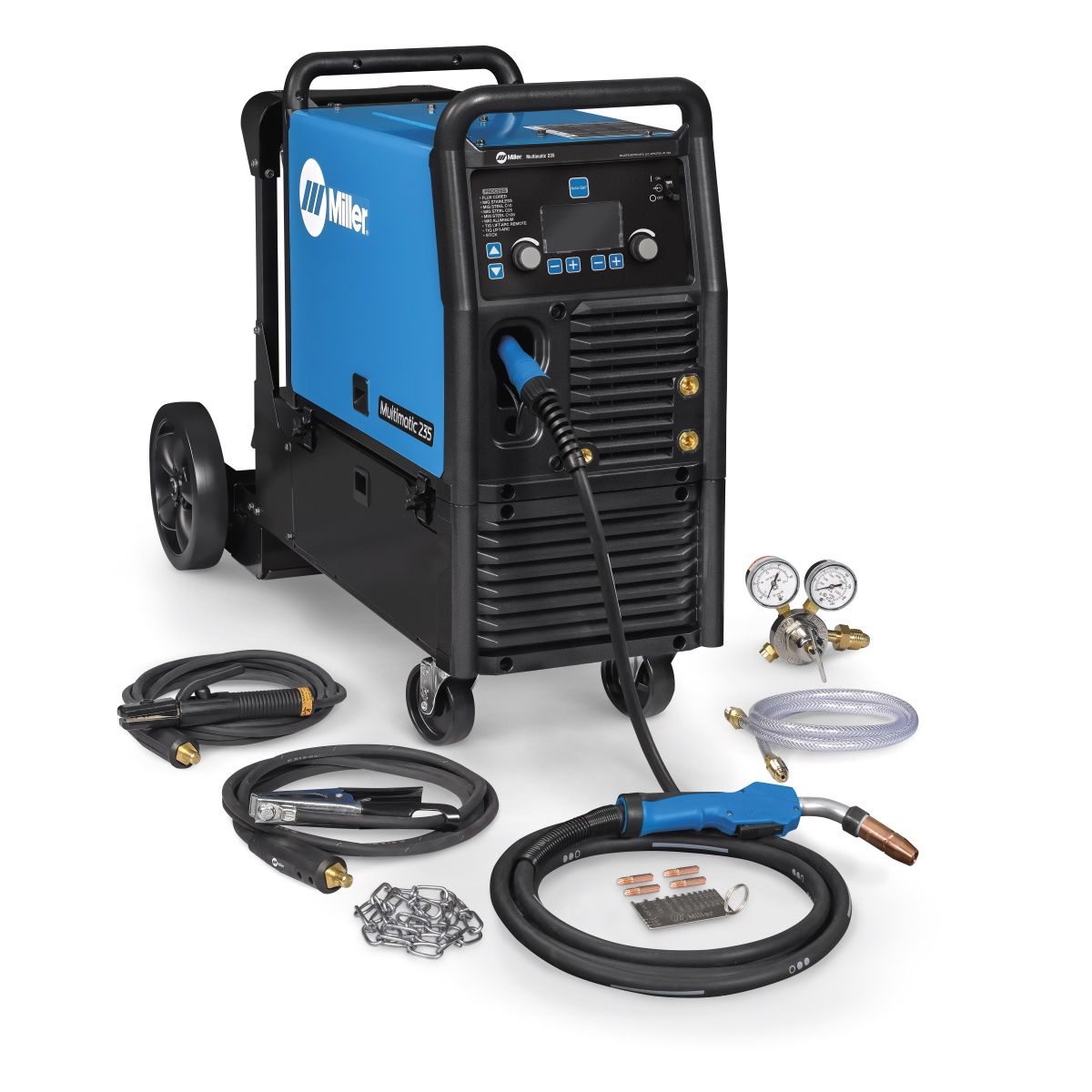

BUY MILLER MULTI MATIC 235 MULTIPROCESS WELDER W/RUNNING GEAR (951846) ONLINE

The Miller Multimeric MULTIMATIC 235 MULTIPROCESS WELDER, Stick and Pulsed DC Tig Welder (951846) is designed for light manufacturing and fabrication users who want a smaller, versatile workhorse that is easy to set up and easy to use. This 235-amp inverter welder can be integrated into running gear for easy movement around the work area or it can be quickly disconnected from the running gear enabling portability and making it easier to integrate into a work cell or work in confined spaces. MULTIMATIC 235 MULTIPROCESS WELDER.

• Dimensions: MULTI MATIC 235 MULTIPROCESS WELDER, 19.24″ H x 13.75″ W x 24.25″ D | With Cart, 32″ H x 13.75″ W x 45″ D

WHAT’S INCLUDED
• Power source with 7 ft. power cord (No Plug Included)
• Running Gear/Cylinder Rack (301449)
• 15 ft. (4.5 m) 250-amp MDX MIG Gun with.030-.035 Liner (Accepts Miller MDX Consumables
• 10 ft. (3 m) work cable with Electrode Holder and 50mm Dinse Connector
• 10 ft. (3m) Work Cable with clamp and 50mm Dinse-style connector
• Flow gauge regulator and gas hose for argon or AR/CO2 mix
• Extra Contact tips
•.030/.035 in. reversible drive rolls
• Material Thickness Gauge

More Information
Brand Miller
SKU IMIL20200027
MPN MIL951846
Mfgs MPN 951846
UPC 715959684200
Prop65 Yes
Material Aluminum, Mild Steel, Stainless Steel
Process Flux Cored (FCAW), MIG, TIG
Max Amperage Output 235 Amps
Usage Home/Hobby, Industrial, Light Industrial
Phase Single Phase
Manufacturer’s Warranty 3 Years
Polarity DC
Duty Cycle 60%
Duty Cycle 60% @ 170A
Portability 127 lbs
Skill Level Beginner, Weekend Warrior, Career Welder
Input Voltage 208, 220, 230, 240
Discontinued Product No
