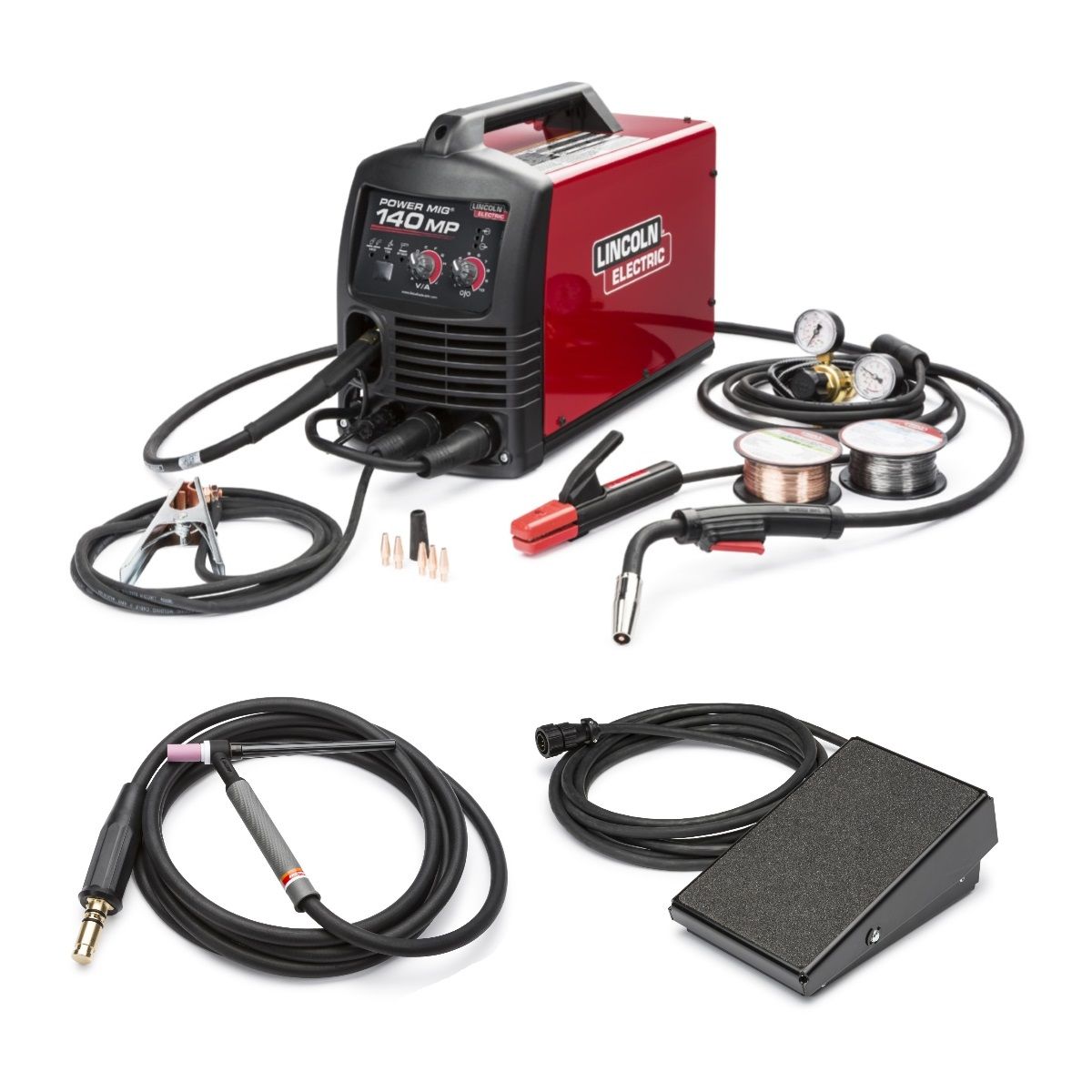

Lincoln Power MIG 140 MP Multi Process Welder TIG One-Pak (K4499-1)
Inspected & Documented Condition notes recorded before palletizing.
30-Day Startup Warranty Covers block, heads and internal moving components.
In Stock & Ready to Freight Welding Equipment

Lincoln Power MIG 140 MP Multi Process Welder TIG One-Pak (K4499-1)

Brand: Lincoln Electric
Condition: Used
$675.78
+ $185.00 flat-rate insured LTL freight (details)
$860.78 delivered to the continental US
  • Palletized and heavy shrink-wrapped for freight
  • LTL carrier delivery with optional liftgate service
  • Ships in 1–2 business days from Los Angeles, CA
  • Transit typically 3–7 business days, continental US
Ask a question about this unit
Secure checkout by Stripe

Need a matched transmission, controls or wiring package? Speak with a parts specialist.

Details & Inspection Notes

LINCOLN POWER MIG 140 MP MULTI PROCESS WELDER TIG ONE-PAK (K4499-1)

The Lincoln PowerMig 140 MP is the best choice for the weekend warrior who wants a 3-in-1 welder. This unit will MIG, Flux-Core MIG, Stick, and DC TIG Weld. DC TIG welding is limited to mild steel and stainless steel. If you need to weld some aluminum, you would need to purchase the SG100 spoolgun (K4360-1). The Power Mig 140 MP weighs 35 lbs and utilitzes 110-120V power so you can take this guy on the road and use wherever needed. The PM 140 MP comes ready to MIG and stick weld out of the box and welds up to 3/16″ material in a single pass.

The package includes the TIG torch and foot control for DC TIG welding

Key Features
• Multi-Process, MIG, Stick, DC TIG (No Aluminum)
• Fast tool-less drive roll changeover
• Simple two knob operation
• Single button for process selection
• Spool gun ready, switch allows user to select spool gun or standard MIG gun
• Oversized twist connectors for durability

Quick Specs
• Input Power, 120V | Single Phase | 20A Draw
• Duty Cycle, MIG 60% @ 95A | TIG 60% @ 115A | Stick 60% @ 80A
• Output Range, MIG 30-140A | TIG 10-120A | Stick 25-90A
• Wire Feed Speed, 40-500 IPM
• Dimensions, 13.6″ H x 8.9″ W x 18.1″ L
• Weight, 34.5 lbs

Includes
• 10 Ft Magnum Pro 100L MIG Gun (8-Pin Connection)
• 10 Ft Electrode Holder and Lead
• 10 Ft Work Clamp and Lead
• Harris Regulator with 4.5 Ft Hose
• 2 Lb Spool.025 L56 MIG Wire
• 1 Lb Spool.035 NR211 Flux Core Wire
• Spare Contact Tips.025 and.035
• Nozzles, Flux Core and Gas Nozzle
• Spindle Adapter for 8 inch Spools
•.025-.035 Dual Track Drive Roll for MIG and Flux Core
• 12.5′ Air-Cooled TIG Torch
• Wired Foot Control

More Information
Brand Lincoln
SKU ILIN20190035
MPN LINK4498-1_K4361-1_K1782-16
Mfgs MPN K4499-1
Prop65 Yes
Material Mild Steel, Stainless Steel
Process Flux Cored (FCAW), MIG
Max Amperage Output 140 Amps
Phase Single Phase
Manufacturer’s Warranty Yes
Polarity DC
Duty Cycle 60%
Duty Cycle 60% @ 95A MIG | 60% @ 115A TIG | 60% @ 80A Stick
Portability 35 lbs
Skill Level Beginner, Weekend Warrior
Discontinued Product No

Startup & Installation Checklist

  • Replace timing components, water pump and plugs before initial startup where applicable.
  • Refill all fluids with manufacturer-specified oil and coolant.
  • Verify sensors, ECU pinouts and grounds against your chassis or hull wiring.
  • Startup warranty covers heads, block and internal lubricated components for 30 days from delivery.

Full terms: 30-day startup warranty · returns
