JDM Engines

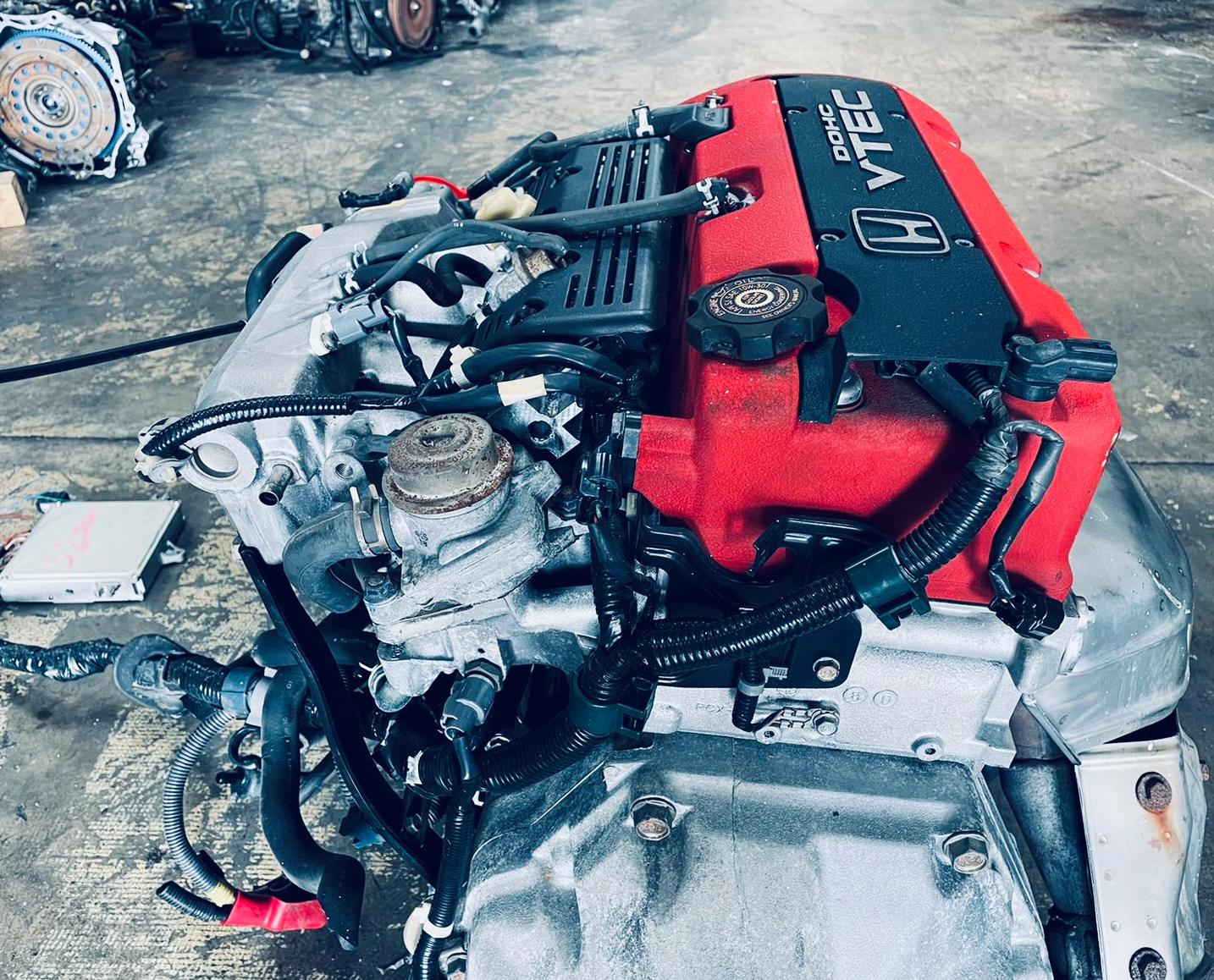

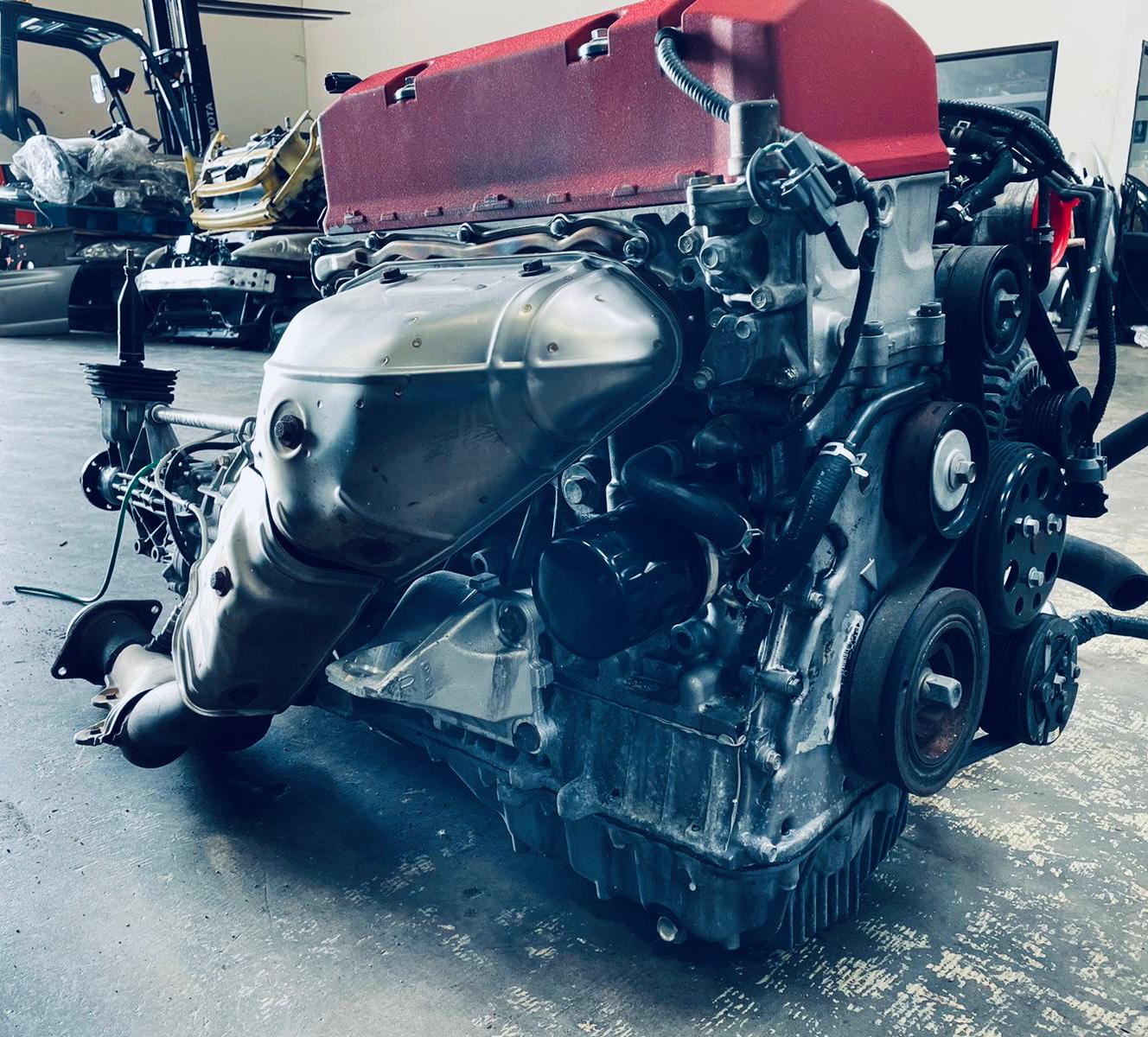

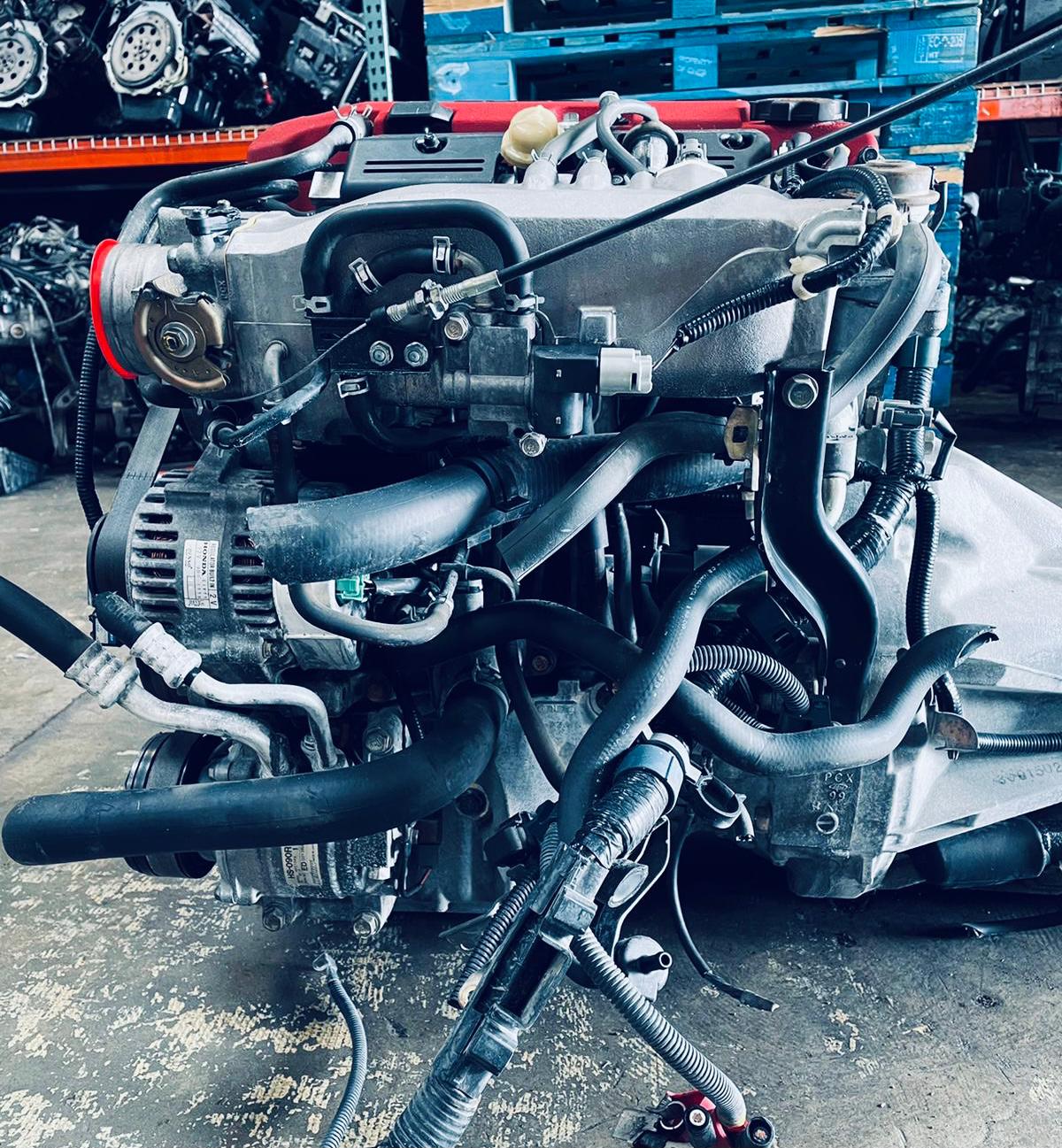

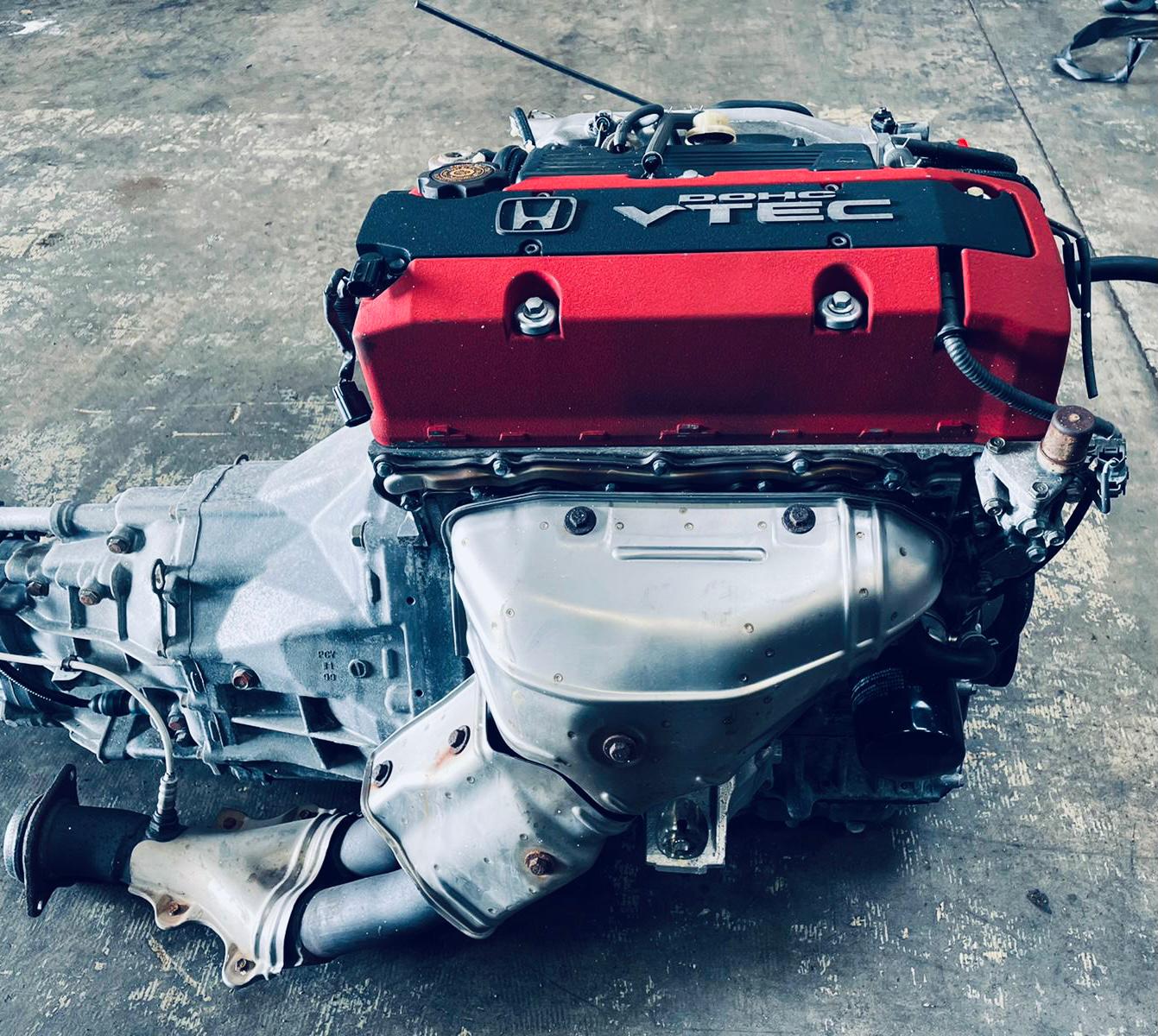

JDM Honda S2000 f20c Engine
$4,024.58
+ $295.00 flat-rate insured LTL freight
(details)
$4,319.58 delivered to the continental US
- Palletized and heavy shrink-wrapped for freight
- LTL carrier delivery with optional liftgate service
- Ships in 1–2 business days from Los Angeles, CA
- Transit typically 3–7 business days, continental US
Secure checkout by Stripe
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes
JDM Honda S2000 F20C Engine For Sale
JDM Honda S2000 F20C Engine For Sale.The robust and irregular F20C motor is a sporty inline-4 engine that was launched in the last quarter of 1999 specifically for the Honda S2000 model. It utilizes a compact aluminum block of cylinders with a height of 224 mm. Inside there is an 84 mm piston stroke crankshaft; with cylinder walls made of FRM material.
Quality, low mileage Honda S2000 F20C engine for sale at.
Parts Included In The JDM Unit
- Complete Engine Head & Block
- ECU
- 6 Speed Transmission
- Shifter Cables
- Shifter Box
- Intake/Exhaust Manifolds
- Ignition Coils
- Alternator
- Power Steering Pump
- Injectors
- AC Compressor
- Fuel Rail
All other parts and accessories as seen in the product image.
*What You See Is Exactly What You Get!
Honda S200 (F20C) Engine Specs
| Manufacturer | Honda Motor Company |
| Also called | Honda F20 |
| Production | 1999-2009 |
| Cylinder block alloy | Aluminum |
| Configuration | Inline-4 |
| Valvetrain | DOHC 4 valves per cylinder |
| Piston stroke, mm (inch) | 84 (3.31) |
| Cylinder bore, mm (inch) | 87 (3.43) |
| Compression ratio | 11.0 11.7 |
| Displacement | 1998 cc (121.9 cu in) |
| Power output | 176 kW (240 HP) at 8,300 rpm 183 kW (250 HP) at 8,300 rpm |
| Torque output | 208 Nm (153 lb·ft) at 7,500 rpm 218 Nm (161 lb·ft) at 7,500 rpm |
| Redline | 8,900 |
| HP per liter | 120 125 |
| Fuel type | Gasoline |
| Weight, kg (lbs) | – |
| Fuel consumption, L/100 km (mpg) -City -Highway -Combined | Honda S2k 13.9 (17) 7.8 (30) 10.0 (23.5) |
| Turbocharger | Naturally aspirated |
| Oil consumption, L/1000 km (qt. per miles) | up to 0.5 (1 qt. per 1200 miles) |
| Recommended engine oil | 0W-40 5W-30 5W-40 5W-50 10W-30 10W-40 |
| Engine oil capacity, L (qt.) | 4.8 (5.1) |
| Oil change interval, km (miles) | 5,000-10,000 (3,000-6,000) |
| Normal engine operating temperature, °C (F) | – |
| Engine lifespan, km (miles) -Official information -Real | – 300,000+ (180,000) |
| Tuning, HP -Max HP -No life span loss | 600+ – |
| The engine is installed in | Honda S2000 |
Startup & Installation Checklist
- Replace timing components, water pump and plugs before initial startup where applicable.
- Refill all fluids with manufacturer-specified oil and coolant.
- Verify sensors, ECU pinouts and grounds against your chassis or hull wiring.
- Startup warranty covers heads, block and internal lubricated components for 30 days from delivery.
Full terms: 30-day startup warranty · returns
