GM 602 Crate Engine Pro Series 4150 Gas Carburetor
$1,289.16
+ $185.00 flat-rate insured LTL freight
(details)
$1,474.16 delivered to the continental US
- Palletized and heavy shrink-wrapped for freight
- LTL carrier delivery with optional liftgate service
- Ships in 1–2 business days from Los Angeles, CA
- Transit typically 3–7 business days, continental US
Secure checkout by Stripe
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes
Designed for maximum performance and features a custom CNC machined Ultra main body, Competition Pro Series metering blocks, Ultra high capacity fuel bowls with #8 O-ring inlet, Billet base plate, Wet flowed blueprinted and tested for maximum performance and power. For gas only

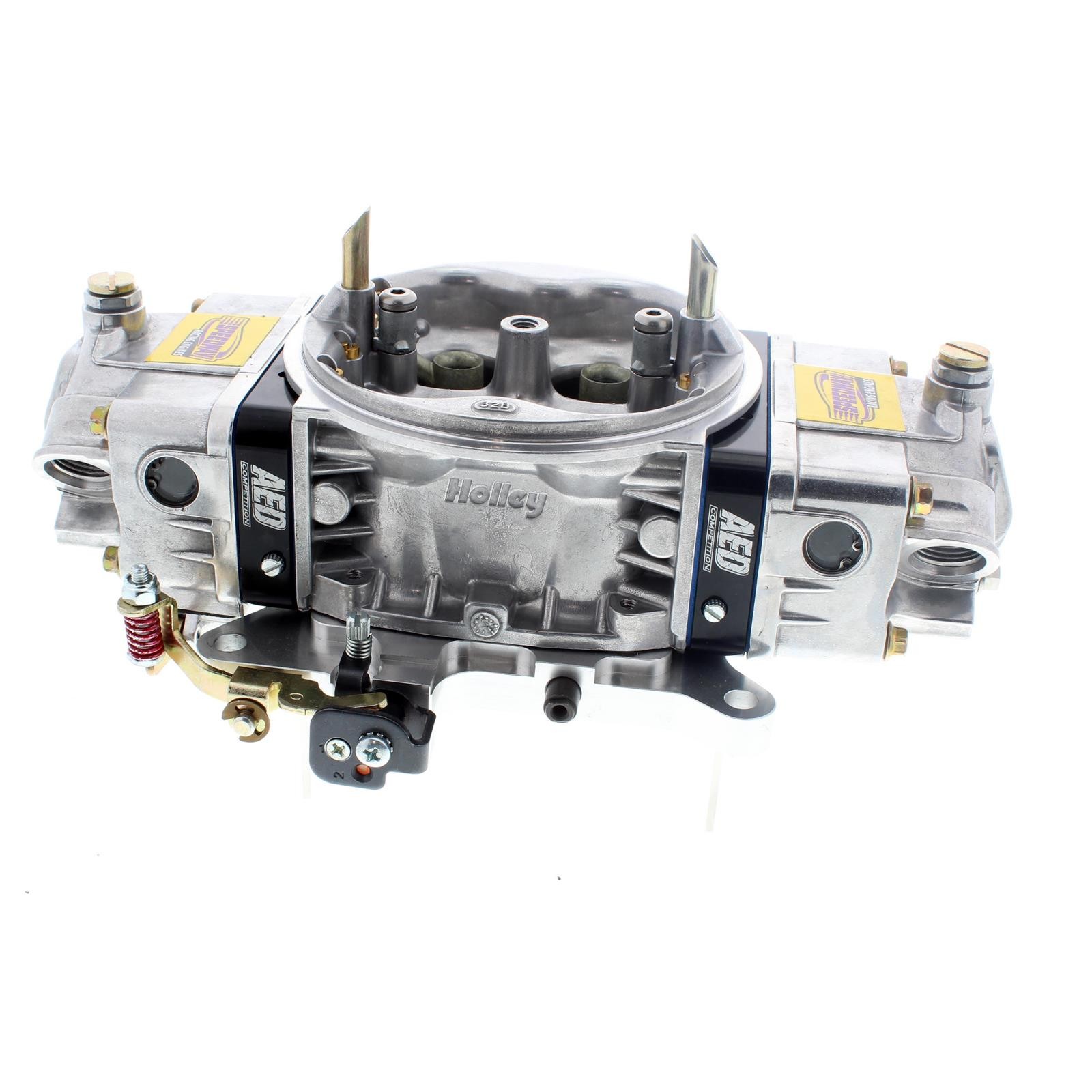

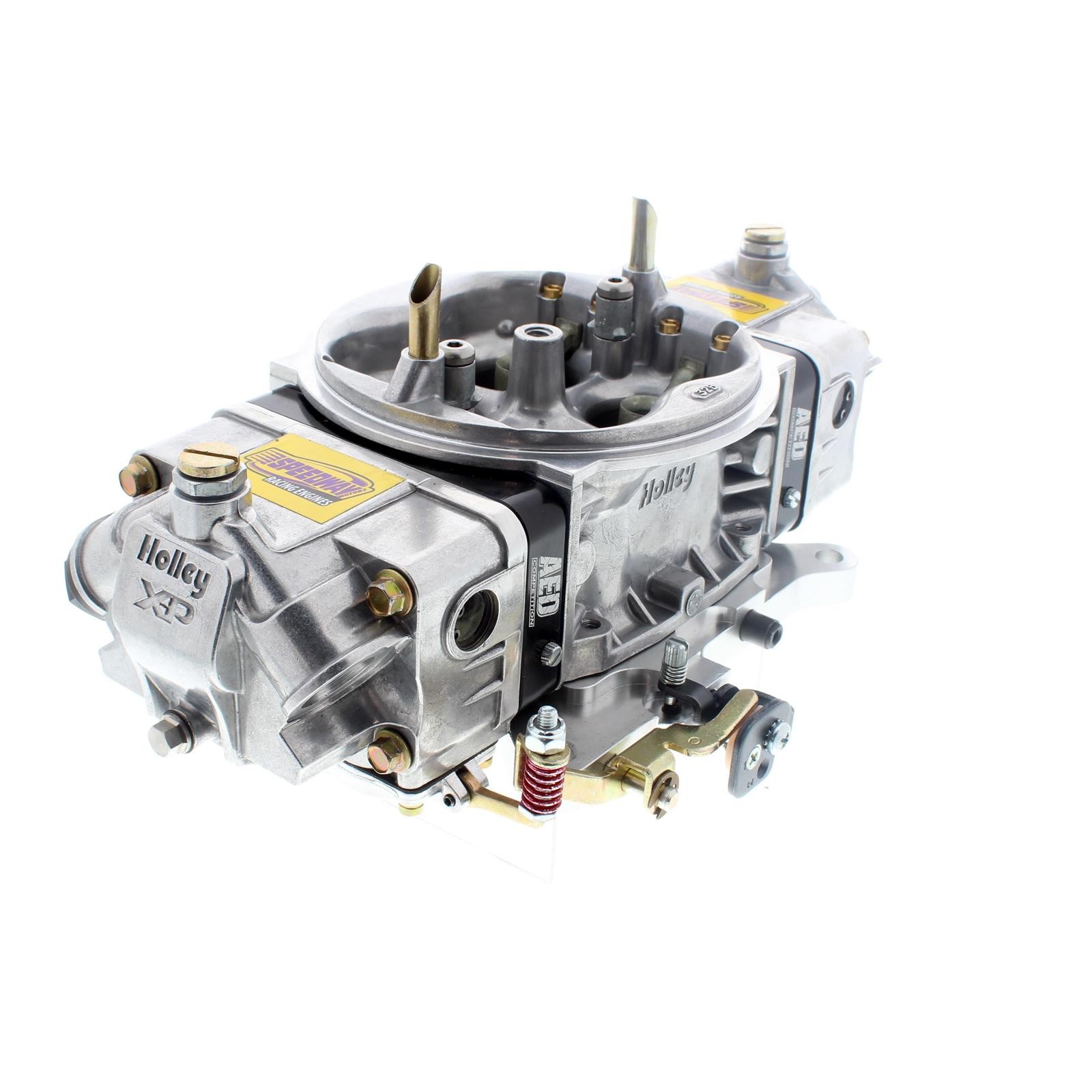

GM 602 Crate Engine Pro Series 4150 Gas Carburetor
Sku # 910650003
Mfr. Part # 91065003
Condition
New
Brand
Speedway Motors Racing Engines
Sold
Each
Details
Info
Finally a GM 602 crate motor carburetor that wont break the bank! Speedway Motors has teamed up with AED Competition to bring you an affordable GM 602 crate carb that out performs the most expensive carburetors on the market. These Speedway exclusive carbs have spent countless hours on the dyno and track test sessions resulting in a custom hand built, sized, wet flowed and maximum performance tested racing carburetor.
- Designed for maximum performance and features a custom CNC machined Ultra main body
- Competition Pro Series metering blocks
- Ultra high capacity fuel bowls with -8 AN O-ring inlet
- Billet base plate, thinned shafts, stainless blades
- Wet flowed, blueprinted and tested for maximum performance and power
- Specifically designed for use on GM 602 racing crate engines
- For gas fuel ONLY
Charts
(PDF)
Specs
Sold in Quantity
Each
Color
Silver
Fuel Type
Gasoline
Carburetor Barrels
4-Barrel
Secondary Type
Mechanical
Fuel Inlet Type
Dual
Choke Type
No Choke
CFM
650 CFM
Finish
Ball Burnished
Carburetor Flange Type
4-Barrel Square Bore
Throttle Linkage Type
Universal
Gasket(s) Included
Yes
CFM Range
600-699 CFM
Bolt Hole Pattern
5.160″ x 5.625″
MFG. Part #
91065003
Related Items / Suggested Parts
Performance Distributors S127212 602/604 Crate DUI Distributor
NGK N3754 Spark Plug for GM 602 Racing Crate Motors
Brisk GOR15LGS Premium LGS Spark Plug, GM Chevy 602
Startup & Installation Checklist
- Replace timing components, water pump and plugs before initial startup where applicable.
- Refill all fluids with manufacturer-specified oil and coolant.
- Verify sensors, ECU pinouts and grounds against your chassis or hull wiring.
- Startup warranty covers heads, block and internal lubricated components for 30 days from delivery.
Full terms: 30-day startup warranty · returns
