BluePrint BP3961CTC GM 396 SBC Dressed Engine, Alum Heads, Roller Cam
$3,427.54
+ $295.00 flat-rate insured LTL freight
(details)
$3,722.54 delivered to the continental US
- Palletized and heavy shrink-wrapped for freight
- LTL carrier delivery with optional liftgate service
- Ships in 1–2 business days from Los Angeles, CA
- Transit typically 3–7 business days, continental US
Secure checkout by Stripe
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes
True Blue Power! The manufacturer's pro engine builders are enthusiasts just like you and it shows in the quality and performance of every engine they build. Each crate engine is carefully dyno tested and ships with printed, proven results. If you’re looking serious horsepower at an affordable price, Engines is the choice for you!

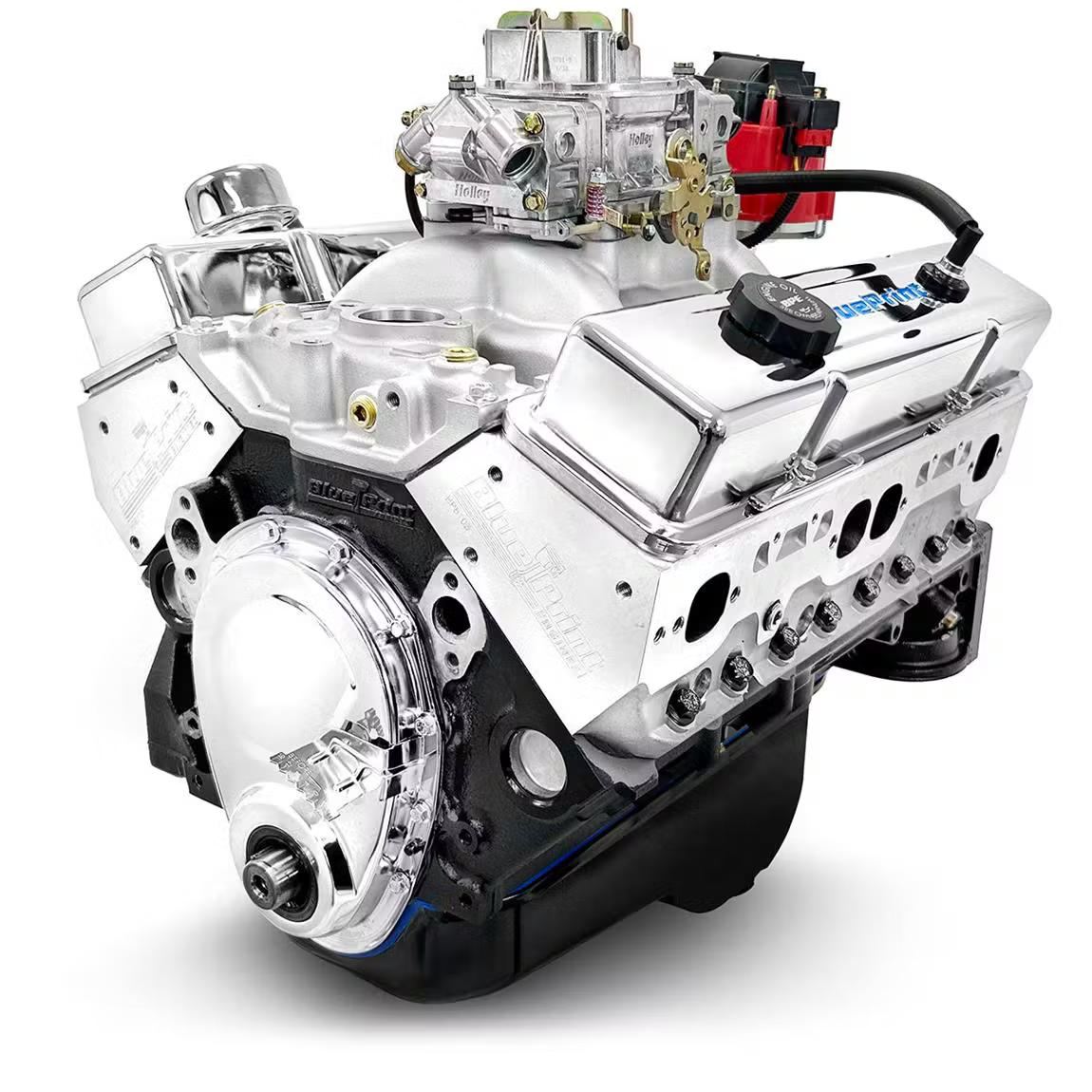

GM 396 SBC Dressed Engine, Aluminum Heads, Roller Cam
Overview
HP & Torque: 485 HP / 500 FT LBS
Compression Ratio: 10.4:1
Aluminum Heads
Forged Pistons
Roller Cam
Forged Crank
Part #: BP3961CTC
Block
4 bolt main, small block
Rotating Assembly
New forged steel crankshaft
New forged pistons and connecting rods
Hastings Moly rings
Balanced rotating assembly
Melling high volume oil pump
Roller cam
Heavy duty double roller timing set
Long slot, stamped steel rockers
Cylinder Heads
Performance aluminium
Hardened retainers and springs
2.02 swirl polished intake valves
1.60 swirl polished exhaust valves
BP Aluminum Head Part# HP8103
Cam Specs
Cam Type: Roller
.544 Intake.555 Exhaust
230 Intake / 236 Exhaust duration @.050
110 deg lobe separation angle
Ignition Timing
34 degrees at 3500 RPM
Also Includes
Aluminum intake manifold
Distributor
750cfm carburetor
10.4 to 1 compression
Valve covers, timing cover and oil pan
Brass freeze plugs
Dyno tested “ and shipped with results
Notes
Not for use in pollution controlled vehicles.
Startup & Installation Checklist
- Replace timing components, water pump and plugs before initial startup where applicable.
- Refill all fluids with manufacturer-specified oil and coolant.
- Verify sensors, ECU pinouts and grounds against your chassis or hull wiring.
- Startup warranty covers heads, block and internal lubricated components for 30 days from delivery.
