In Stock
Inspected & Documented
Condition notes recorded before palletizing.
30-Day Startup Warranty
Covers block, heads and internal moving components.
In Stock & Ready to Freight
Outboard Motors

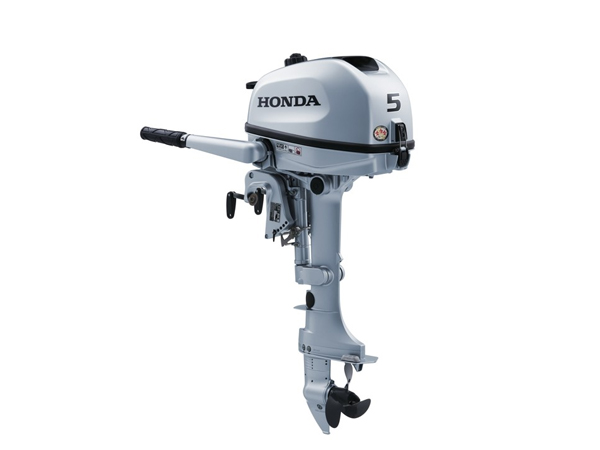

2018 Honda 5 Hp BF5DHLHNA Outboard Motor
- Palletized and heavy shrink-wrapped for freight
- LTL carrier delivery with optional liftgate service
- Ships in 1–2 business days from Los Angeles, CA
- Transit typically 3–7 business days, continental US
Secure checkout by Stripe
Need a matched transmission, controls or wiring package? Speak with a parts specialist.
Details & Inspection Notes
2018 Honda 5 Hp BF5DHLHNA Outboard Motor
The new Honda 5 HP outboard motor offers quiet, low vibration performance, ideal for small tenders, canoes, jon boats, and inflatables. This lightweight, easy-to-operate motor with decompression easy starting boasts a large capacity 1.5L internal fuel tank with an external connector that out runs its competitors. This best-in-class 5 HP motor is available in long or short shaft models. Plus, you’ll get the best 5-year factory warranty in the business. You’ve found a winner with the new Honda award winning 5 HP portable outboard.
2018 Honda 5 Hp BF5DHLHNA Outboard Motor
- Reliable, efficient 4-stroke design
- Lightweight and Compact
- Convenient Fold-Down Tiller Handle
- Large Displacement Engine for more power
- Twist grip throttle, more comfortable to use
- True 5 Warranty, unmatched peace of mind
- 4-Front Corrosion Protection System, Fights the elements
- Digital CD Ignition, easy starting
- Low Oil Warning and RPM Reduction Alerts
- Easy to carry and install
- New Isolation Mounts, Reduced Vibration for Comfort and Durability
- Shallow Water Drive
- F-N-R Gearshift
- Wet Sump Lubrication, better durability
- Ultra Low 3 Star CARB Emissions
- Optional 6 amp charging system
- Decompression Mechanism for easy starts
- Easy One-Push and Release Stop Button
- 1.5L internal tank (only) and external connector
2018 Honda 5 Hp BF5DHLHNA Outboard Motor
| MODEL | BF5DHLHNA |
| MODEL YEAR | 2018 |
| SKU | BF5DHLHNA-18 |
| WEIGHT | 60.6000 |
| MANUFACTURER | Honda |
| COUNTRY OF MANUFACTURE | China |
| HORSEPOWER | 5hp |
| SHAFT LENGTH | 20″ (Long) |
| STEERING | Tiller |
| STARTING | Manual |
| TRIM & TILT | Manual |
| FUEL DELIVERY | Carburetor |
| FUEL TANK | External |
| CYLINDER(S) | 1 |
| DISPLACEMENT | 127 cc (7.8 cubic inches) |
| BORE AND STROKE | 60 x 45 mm (2.4 x 1.8 in.) |
| FULL THROTTLE RPM RANGE | 5000-6000 RPM |
| IGNITION SYSTEM | Digital CDI |
| INDUCTION SCAVENGING | OHV |
| VALVES PER CYLINDER | 2 |
| FUEL TYPE | Unleaded Gasoline (87 octane) |
| FUEL TANK / FUEL LINE | Internal (1.5 L) with external connector |
| OIL TYPE | FC-W 10W-30 |
| OIL CAPACITY | Please inquire. |
| LUBRICATION | Wet Sump |
| ALTERNATOR | OPTIONAL 6 amp (installation required) |
| COOLING SYSTEM | Water Cooled |
| SALTWATER RATED | YES |
| GEAR RATIO | 2.08:1 |
| GEAR SHIFT | Forward, Neutral, Reverse |
| PROPELLER | 7-7/8″ Dia. x 7-1/2″ Pitch 3-Blade Aluminum |
| INTERNAL BATTERY | No |
2018 Honda 5 Hp BF5DHLHNA Outboard Motor
WHAT’S IN THE BOX ?
1 X Outboard Motor
1 X Outboard Tiller Handle
1 X Fuel Tank
1 X Quick Connect Fuel Line tilt switch
1 x Teleflex SL3 Throttle control Top or side Mount ? + Free Installation Universal Cables
1 X Outboard Warranty Card from manufacturer Valid 5 Years Depending on outboard type
1 X Standart Aluminum Propeller Depending on outboard Brands, type & Horse power.
1 X Trim limiter
3 X Gall Free Oil Depending on outboard Brands Yamalube, Honda Marine Oil, Mercury Premium Oil
1 X Stainless Outboard Anti-Theft
1 X Book Owner’s Manual Guide from manufacturer
1 X Ebook Installation Guide & And how to take care of the engine properly.
3 X Cable Protection System Length 800mm
Startup & Installation Checklist
- Replace timing components, water pump and plugs before initial startup where applicable.
- Refill all fluids with manufacturer-specified oil and coolant.
- Verify sensors, ECU pinouts and grounds against your chassis or hull wiring.
- Startup warranty covers heads, block and internal lubricated components for 30 days from delivery.
Full terms: 30-day startup warranty · returns
