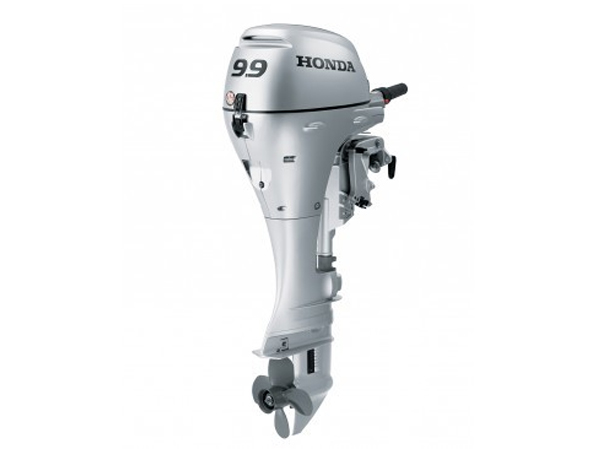

2017 Honda 9.9 HP BF10DK3LHS Outboard Motor

Brand: Honda
Condition: New
Regular price $2,595.99 Save $649.00
Sale price $1,946.99
Sale price ends Mon Nov 30, 11:59 PM PT
Freight included, insured LTL to the continental US (rates)
$1,946.99 delivered to the continental US
  • Palletized and heavy shrink-wrapped for freight
  • LTL carrier delivery with optional liftgate service
  • Ships in 1–2 business days from Los Angeles, CA
  • Transit typically 3–14 business days, continental US
Ask a question about this unit

Need a matched transmission, controls or wiring package? Speak with a parts specialist.

Details & Inspection Notes

Listed here, Honda's BF10DK3LHS is Honda-rated at 9.9 HP, updated for 2017. The shaft measures 20-inch, a push-button electric starter. Built for buyers who want simple, largely, hands-on controls over top speed.

Check the shaft first

This motor uses a 20-inch shaft, broadly, which Honda calls long. A quick transom check now saves a return later.

How you run it

You steer this one by tiller. At full throttle, expect 5000-6000 rpm. You get a 3-star emissions rating. You can run it cleared for saltwater running.

It has forward, neutral, and reverse. Oil is FC-W 10W-30, admittedly, wet-sump, not a pre-mix.

It's a 222cc powerhead. Fuel should be 86 octane unleaded.

On a small boat, whether as kicker or primary, being easy to lift on and off , primarily, the transom counts for a lot.

At the end of an outing, a quick flush and rinse keeps corrosion , chiefly, from taking hold on the housing.

It's , fundamentally, a small, simple engine, not a big-block project. Parts and service are the ordinary , effectively, small-outboard kind, nothing exotic.

Comes with

Besides the outboard, you get the quick-connect fuel line, an aluminum propeller, the owner's manual and tool kit, and the fuel tank.

For running two side by side? confirm , ultimately, rotation first. Drain the carburetor and keep fuel fresh before storing.

Honda covers it with a 5-year factory warranty.

Before you buy

Propeller included? Yes.

, altogether, New or used? New.

Power tilt? No, genuinely, manual tilt.

Warranty? Yes, 5 years.

Weigh this against the rest of Honda's , overall, small-outboard lineup first if you're unsure.

Specifications

Model BF10DK3LHS
Model Year 2017
SKU BF10DK3LHS-17
Weight 98.0000
Manufacturer Honda
Country of Manufacture Japan
Horsepower 9.9hp
Shaft Length 20″ (Long)
Steering Tiller
Starting Electric
Trim & Tilt Manual
Fuel Delivery Carburetor
Fuel Tank External
Cylinder(s) 2
Displacement 222 cc (13.5 cubic inches)
Bore and Stroke 58 x 42 mm (2.3 x 1.7 in.)
Full Throttle RPM Range 5000-6000 RPM
Ignition System PGM-IG
Induction Scavenging SOHC
Valves per Cylinder 2
Fuel Type Unleaded Gasoline (86 octane)
Fuel Tank / Fuel Line 3.2 Gal. Fuel Tank + Quick Connect Fuel Line
Oil Type FC-W 10W-30
Oil Capacity Please inquire.
Lubrication Wet Sump
Alternator 12-Amp (148 watt)
Cooling System Water Cooled
Saltwater Rated YES
Gear Ratio 2.33:1
Gear Shift Forward, Neutral, Reverse
Propeller 9.25″ Dia. X 8″ Pitch 4-Blade Aluminum
Internal Battery NO

Startup & Installation Checklist

  • Inspect all external gaskets, seals, spark plugs and timing components prior to installation.
  • Refill engine oil, transmission gear oil and coolant to manufacturer-specified capacities before initial cranking.
  • Prime the lubrication system and verify ECU wiring pinouts, sensors, and ground connections.
  • Startup warranty covers internal lubricated components, cylinder heads, and engine block for 30 days from delivery.

Full terms: 30-day startup warranty · returns
